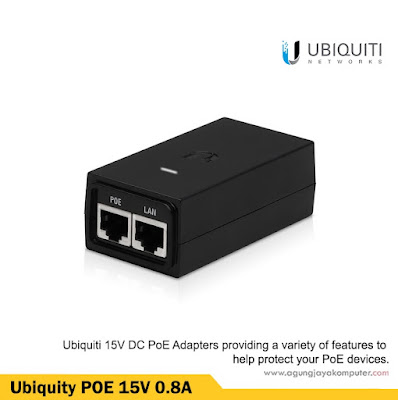

Poe Injector 15V 0.8A - Fast Ethernet

Rp 128.000

Active POE 15V 12W UBNT

Model No : GP-A150-080

Specifications :
- Output Voltage: 15VDC @ 0.8A
- Input Voltage: 90-260VAC @ 47-63Hz
- Input Current: 0.3A @ 120VAC, 0.2A @230VAC
- Inrush Current: 15A peak @120VAC, 30A peak @230VAC
- AC Connector: IEC-320 C6
- Surge Protection: Common Mode
- 80% Current Indicator: Power LED will change colour
- Data IN / POE: RJ45 Shielded Socket
- Clamping Protection: 11V Data, 77.5V Power
- Max Surge Discharge: 1200A (8/20uS) Power
- Peak Pulse Current: 36A (10/1000uS) Data
- Shunt Capacitance: 5pf data
- Response Time 1nS
- Efficiency: 70+%
- Output Ripple: 1% Max
- Switching Frequency: 200kHz
- Line Regulation: +/- 0.5%
- Load Regulation: +/- 1%
- Operating Temperature: -10C to +60C
- Storage Temperature: -20C to +85C
- Operating Humidity: 5% to 90% non condensing
- Compliance: UL, EN55022 (CISPR22) class B, Meets CE
- Size (LxWxH): 85 x 43 x 30 (mm)
- Weight: 4oz
